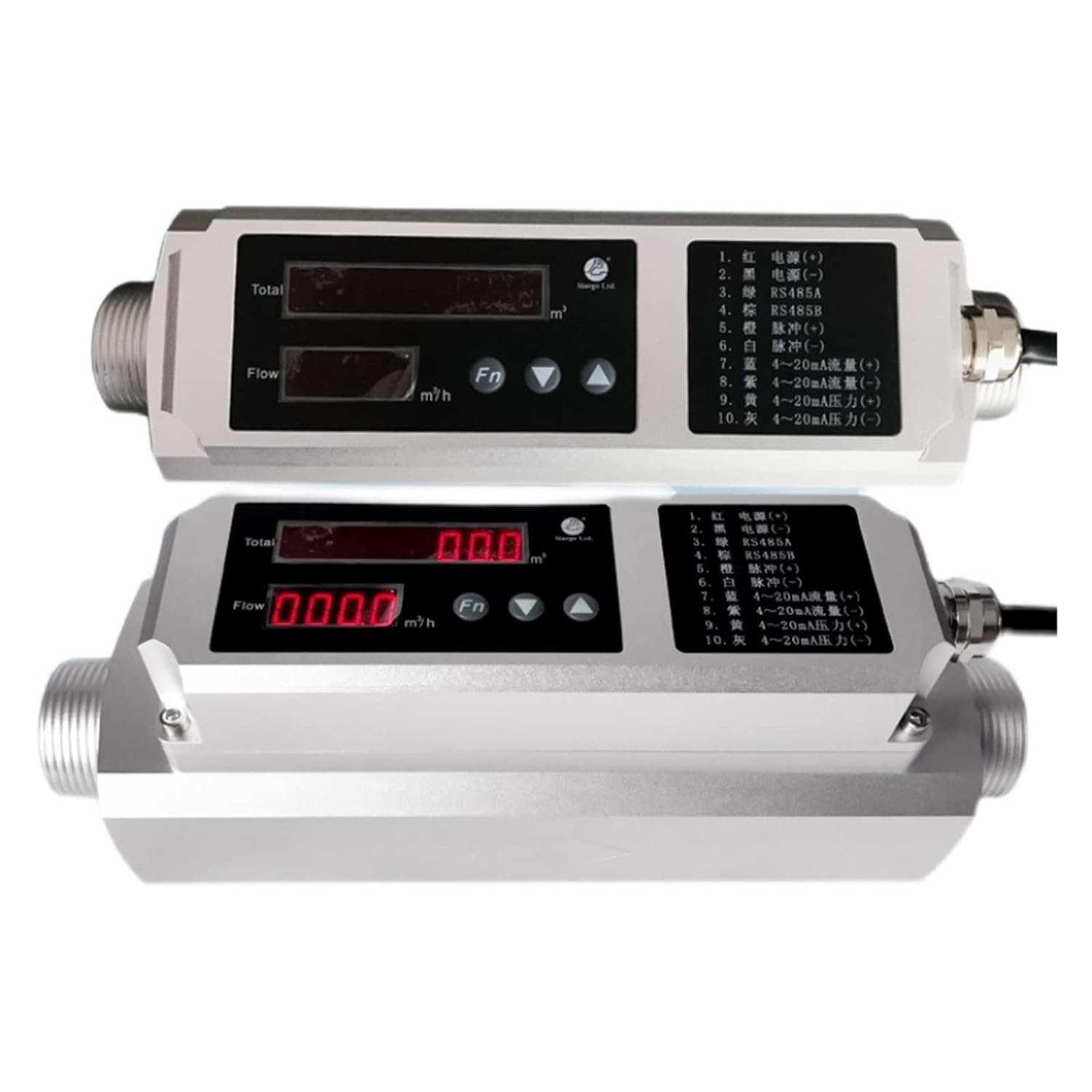

MF2000 Series MF2025/MF2032/MF2050 Large Flow 2400m³/H Digital Gas Mass Flowmeter Air Nitrogen Oxygen Argon Carbon DioxideDescription:MF2000 series gas mass flow meters are specially designed for various management and control of various low-cost industrial gases. It can provide intuitive mass flow information, and the friendly user interface design (RS485/4-20mA) can easily carry out data processing. This type of product is suitable for pipes of 25-50mm, with an accuracy of (2.0+0.5FS)% and a turndown ratio of 50:1. The executive standard of this series of flowmeters is: Q/77453766-1. 1-2017.Specification:MF2025Nominal diameter: 25mm; Maximum flow: 100m³/h; Minimum flow: 2m³/h; Start flow: 0.5m³/h.MF2032Nominal diameter: 32mm; Maximum flow: 160m³/h; Minimum flow: 3m³/h; Start flow: 1.0m³/h.MF2050Nominal diameter: 50mm; Maximum flow: 400m³/h; Minimum flow: 10m³/h; Start flow: 2.0m³/h.Accracy (2.0+0.5FS)%Turndown ratio50:1Power Supply12-24VDCOutputRS485, 4-20mADisplayLEDWorking Pressure 1.0MPaWorking Temperature-10 +55Definition of external wiring of flowmeter:Please connect the cable between the flowmeter and the user interface as defined below, and ensure that the flowmeter housing is reliably connected to the ground.RedDC + (1224VDC power input positive pole);BlackDC - (power ground, GND );
